Application scope: filtering

Type: Inductive coil

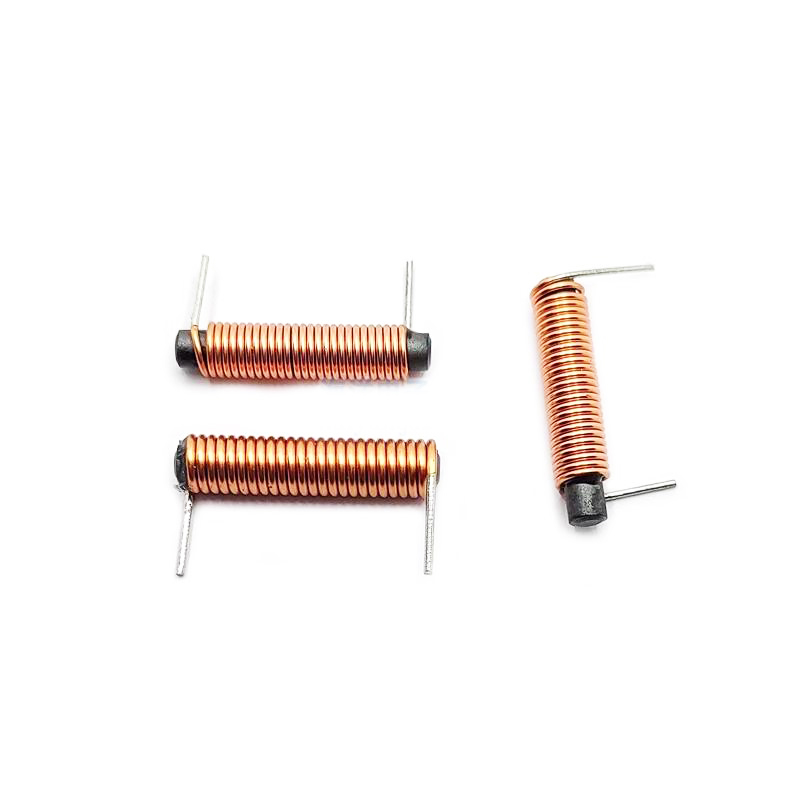

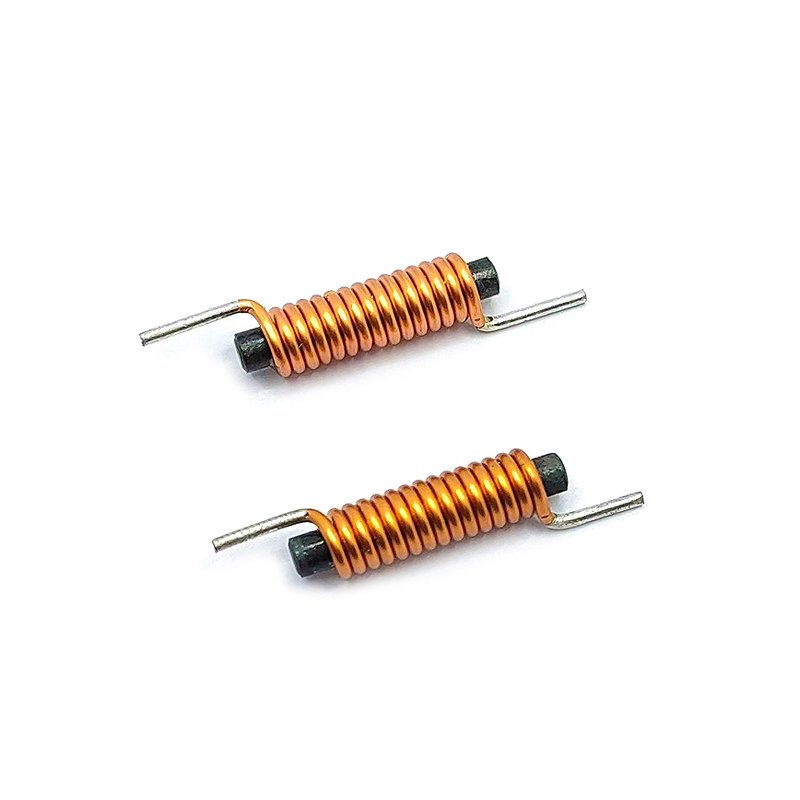

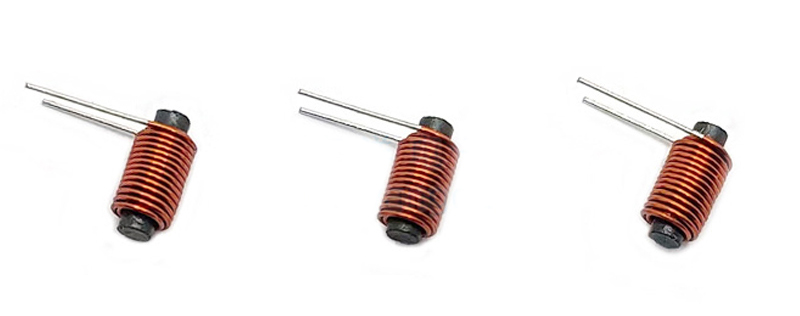

Model: Magnetic Rod Inductor

Packaging form: plug-in inductance

Winding form: single-layer interlayer winding

Magnetic properties: ferrite core

Core shape: cylindrical

Installation method: vertical sealing

Skeleton material: plastic

Allowable error: 10%

Inductance: customizable

Rod inductor characteristics:

Used for filtering chokes, power supplies, power amplifiers, and noise filtering in switching circuits during rectification. Control rectifier and thyristor control circuit output. The product is made by winding enameled copper wire on a rod-shaped magnetic core and directly pin it out for tin plating, using a high current and low resistance design. Adapting to high current circuit boards, which can cause instantaneous current when the load is started or closed in the store, and adding magnetic rod ports to alleviate current changes and protect the load. When used as a filter, it has a wide bandwidth and therefore does not require a typical high Q characteristic. A low DCR can ensure a small voltage drop. DCR is defined as the DC resistance of a component without an AC signal.

Application:

switching power supply, LED drive power supply, liquid crystal display, charger and digital products.

Source direct sales, various parameters can be customized, a full range of environmentally friendly inductance coils are available in stock.
